于莉芳, 傅学焘, 杨秀玲, 滑思思, 冯云堂. 2种温度下污泥水富集硝化菌的对比[J]. 环境工程学报, 2018, 12(1): 102-109. doi: 10.12030/j.cjee.201705103
引用本文: 于莉芳, 傅学焘, 杨秀玲, 滑思思, 冯云堂. 2种温度下污泥水富集硝化菌的对比[J]. 环境工程学报, 2018, 12(1): 102-109. doi: 10.12030/j.cjee.201705103
shu
YU Lifang, FU Xuetao, YANG Xiuling, HUA Sisi, FENG Yuntang. Comparison of nitrifier accumulation in sludge liquor treatment system at two different temperatures[J]. Chinese Journal of Environmental Engineering, 2018, 12(1): 102-109. doi: 10.12030/j.cjee.201705103
Citation: YU Lifang, FU Xuetao, YANG Xiuling, HUA Sisi, FENG Yuntang. Comparison of nitrifier accumulation in sludge liquor treatment system at two different temperatures[J]. Chinese Journal of Environmental Engineering, 2018, 12(1): 102-109. doi: 10.12030/j.cjee.201705103
shu

2种温度下污泥水富集硝化菌的对比

  • 1.

    西安建筑科技大学环境与市政工程学院,西安710055

  • 2.

    中山市春兴建筑科技有限公司,中山 528400

  • 基金项目:

    国家自然科学基金青年基金资助项目(51208414)

    陕西省教育厅专项(12JK0650)

Comparison of nitrifier accumulation in sludge liquor treatment system at two different temperatures

  • 1.

    School of Environmental & Municipal Engineering, Xi′an University of Architecture and Technology, Xi′an 710055, China

  • 2.

    Zhongshan Chunxing Construction Technology Co.Ltd., Zhongshan 528400, China

  • Fund Project:

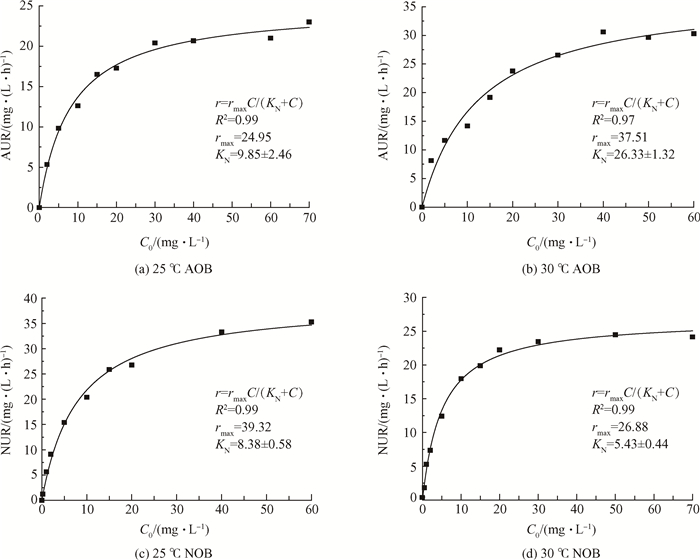

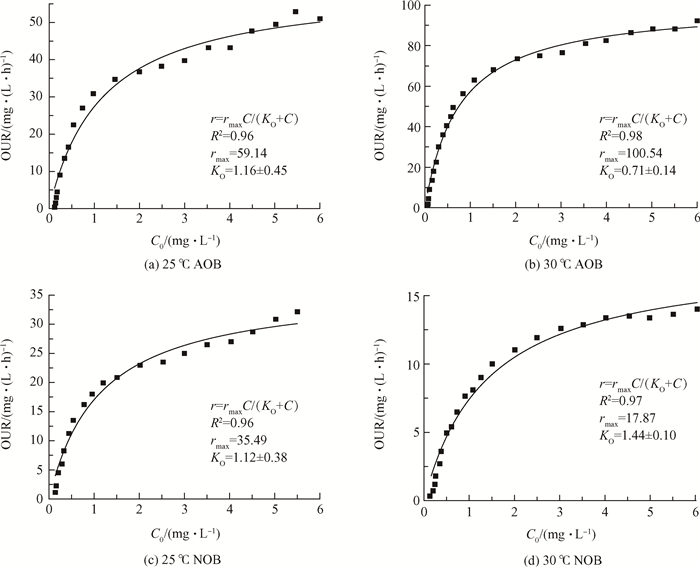

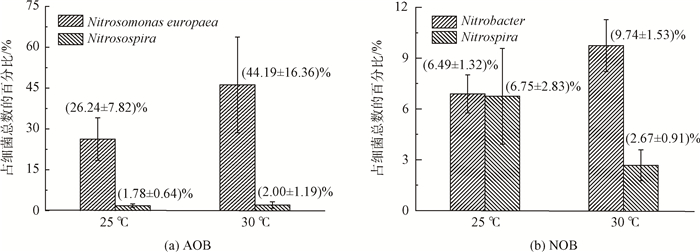

  • 摘要: 污泥水富集硝化菌添加强化硝化工艺可以在处理高温、高浓度氨氮污泥水的同时富集硝化菌并添加至城市污水处理系统强化硝化,但硝化菌对温度敏感,温度将对硝化菌的富集效果产生影响。研究在高氨氮负荷(1.20 kg·(m3·d)-1)下运行SBR以富集硝化菌,对比2种温度(25 ℃、30 ℃)下富集硝化菌的群落结构和动力学特性。荧光原位杂交结果表明,硝化菌r-决策者(Nitrosomonas europaea,Nitrobacter)的份额随温度升高而逐渐增加。硝化动力学参数测定发现,随温度升高,AOB活性增加,基质半饱和常数增加；而NOB则相反,这主要是因为温度升高,反应器中最大游离氨(FA)、游离亚硝酸(FNA)浓度增加,而NOB比AOB更容易受FA、FNA的抑制。此外,温度对AOB与NOB的溶解氧半饱和常数无明显影响。
    Abstract: Sludge liquor (reject water) is one of the by-products of the water resource recovery facilities (WRRFs), it has relative high temperature, high ammonia concentration and may increase the nitrogen loading of the WRRFs. Bioaugmentation with nitrifiers enriched by sludge liquor is a promised way to enhance nitrification performance of the water resource recovery facilities (WRRF). While nitrifiers are temperature sensitive, the effect of nitrifier enrichment may affected by temperature. In this study, nitrifiers were accumulated in an SBR at high ammonia loading (1.20 kg· (m3·d)-1) at 25 ℃ and 30 ℃, then the enriched nitrifier community and the kinetic performances were investigated by fluorescence in situ hybridization (FISH) and respirometric assays. FISH results showed that r-strategists (Nitrosomonas europaea,Nitrobacter) increased with temperature. The kinetic parameters showed that the maximum substrate utilization rate and the half saturation constant for substrate of ammonia oxidized bacteria (AOB) increased with temperature, while the opposite trend was shown with nitrite oxidized bacteria (NOB) mainly due to severe free nitrous acid (FNA) inhibition under high temperature. Besides, it didn’t have significant difference between the half saturation constant for oxygen of nitrifiers at 25 ℃ and 30 ℃.
  • 加载中
  • [1] 曾薇, 张丽敏, 王安其,等.污水处理系统中硝化菌的菌群结构和动态变化[J].中国环境科学,2015,35(11):3257-3265
    [2] SAUNDERS A M, ALBERTSEN M, VOLLERTSEN J, et al.The activated sludge ecosystem contains a core community of abundant organisms[J].ISME Journal,2016,10(1):11-20
    [3] SIRIPONG S, RITTMANN B E.Diversity study of nitrifying bacteria in full-scale municipal wastewater treatment plants[J].Water Research,2007,41(5):1110-1120
    [4] ALAWI M, OFF S, KAYA M, et al.Temperature influences the population structure of nitrite-oxidizing bacteria in activated sludge[J].Environmental Microbiology Reports,2009,1(3):184-190
    [5] KHANGEMBAM C D.Effect of temperature on nitrifying microbes, emphasizing on ammonia oxidizing archaea and bacteria[J].Journal of Biological Sciences and Medicine,2016,2(2):7-14
    [6] 窦娜莎, 王琳.不同温度下曝气生物滤池运行效能与微生物群落结构[J].环境工程学报,2016,10(6):2800-2806
    [7] 王素兰, 罗佳佳, 于洁,等.A2O-MBR工艺脱氮除磷效果的季节性变化分析[J].中国给水排水,2016,32(9):95-97
    [8] 张羽, 孙力平, 钟远.天津市某污水处理厂脱氮效率的评价[J].环境工程学报,2016,10(4):1681-1687
    [9] 于莉芳, 彭党聪.城市污水厂污泥水脱氮技术的应用及进展[J].中国给水排水,2007,23(8):9-13
    [10] STENSTROM F, LA C J J.Promotion of nitrifiers through side-stream bioaugmentation: A full-scale study[J].Water Science and Technology,2016,74(7):1736-1743
    [11] ANTHONISEN A C, LOEHR R C, PRAKASAM T B, et al.Inhibition of nitrification by ammonia and nitrous acid[J].Journal of Water Pollution Control Federation,1976,48(5):835-852
    [12] 徐珊, 成官文, 韦文渊,等.高浓度氨氮污泥脱滤液的半硝化实验研究[J].环境工程学报,2011,5(8):1768-1772
    [13] 王博, 姚倩, 彭党聪,等.双重抑制下亚硝化系统的启动及运行特性[J].环境工程学报,2017,11(3):1525-1532
    [14] WEI D, XUE X D, YAN L G, et al.Effect of influent ammonium concentration on the shift of full nitritation to partial nitrification in a sequencing batch reactor at ambient temperature[J].Chemical Engineering Journal,2014,235:19-26
    [15] GATTI M N, GIMENEZ J B, CARRETERO L, et al.Enrichment of AOB and NOB population by applying a BABE reactor in an activated sludge pilot plant[J].Water Environment Research,2015,87(4):369-377
    [16] TORRETTA V, RAGAZZI M, TRULLI E, et al.Assessment of biological kinetics in a conventional municipal WWTP by means of the oxygen uptake rate method[J].Sustainability,2014,6(4):1833-1847
    [17] BLACKBURNE R, VADIVELU V M, YUAN Z G, et al.Kinetic characterisation of an enriched Nitrospira culture with comparison to Nitrobacter[J].Water Research,2007,41(14):3033-3042
    [18] ZHOU Y, OEHMEN A, LIM M, et al.The role of nitrite and free nitrous acid (FNA) in wastewater treatment plants[J].Water Research,2011,45(15):4672-4682
    [19] VADIVELU V M, YUAN Z G, FU X C, et al.The inhibitory effects of free nitrous acid on the energy generation and growth processes of an enriched nitrobacter culture[J].Environmental Science & Technology,2006,40(14):4442-4448
    [20] WU J, HE C D, LOOSDRECHT M C M V, et al.Selection of ammonium oxidizing bacteria (AOB) over nitrite oxidizing bacteria (NOB) based on conversion rates[J].Chemical Engineering Journal,2016,304:953-961
    [21] 于莉芳, 潘瑞玲, 彭党聪,等.流态对活性污泥硝化性能及菌群结构的影响[J].环境工程学报,2014,8(9):3563-3566
    [22] NOGUEIRA R, MELO L.Competition between Nitrospira spp.and Nitrobacter spp.in nitrite-oxidizing bioreactors[J].Biotechnology & Bioengineering,2006,95(1):169-175
    [23] WAGNER M, LOY A, NOGUEIRA R, et al.Microbial community composition and function in wastewater treatment plants[J].Antonie van Leeuwenhoek,2002,81(1):665-680
    [24] TAYLOR A E, BOTTOMLEY P J.Nitrite production by Nitrosomonas europaea and Nitrosospira spp.AV in soils at different solution concentrations of ammonium[J].Soil Biology & Biochemistry,2006,38(4):828-836
    [25] LAANBROEK H J, BODELIER P L E, GERARDS S.Oxygen consumption kinetics of Nitrosomonas europaea and Nitrobacter hamburgensis grown in mixed continuous cultures at different oxygen concentrations[J].Archives of Microbiology,1994,161(2):156-162
    [26] GHIMIRE B K.Investigation of oxygen half saturation coefficients for nitrification[D].Washington: The George Washington University,2012
  • 加载中
WeChat 点击查看大图
计量
  • 文章访问数:  3164
  • HTML全文浏览数:  2887
  • PDF下载数:  301
  • 施引文献:  0
出版历程
  • 刊出日期:  2018-01-14

2种温度下污泥水富集硝化菌的对比

  • 1. 西安建筑科技大学环境与市政工程学院,西安710055
  • 2. 中山市春兴建筑科技有限公司,中山 528400
基金项目:

国家自然科学基金青年基金资助项目(51208414)

陕西省教育厅专项(12JK0650)

摘要: 污泥水富集硝化菌添加强化硝化工艺可以在处理高温、高浓度氨氮污泥水的同时富集硝化菌并添加至城市污水处理系统强化硝化,但硝化菌对温度敏感,温度将对硝化菌的富集效果产生影响。研究在高氨氮负荷(1.20 kg·(m3·d)-1)下运行SBR以富集硝化菌,对比2种温度(25 ℃、30 ℃)下富集硝化菌的群落结构和动力学特性。荧光原位杂交结果表明,硝化菌r-决策者(Nitrosomonas europaea,Nitrobacter)的份额随温度升高而逐渐增加。硝化动力学参数测定发现,随温度升高,AOB活性增加,基质半饱和常数增加；而NOB则相反,这主要是因为温度升高,反应器中最大游离氨(FA)、游离亚硝酸(FNA)浓度增加,而NOB比AOB更容易受FA、FNA的抑制。此外,温度对AOB与NOB的溶解氧半饱和常数无明显影响。
